Concept of our website “More Freedom with Python”

This site aims to automate troublesome daily tasks and improve efficiency using Python, currently the most popular programming language. The goal is to introduce a variety of useful libraries (modules) in each issue.

Why? Why Python…

Python provides a variety of libraries (modules) that allow us to manipulate and automate familiar applications.

It is a well-balanced scripting language that is easy for beginners to understand, yet has a full-fledged object-oriented aspect.

What? Automate…

When we think of the most familiar applications used in the business scene, the first ones that come to mind are probably MS-Office’s 「Excel」, 「Word」, and 「PowerPoint」.

Officeソフト群
Fig1. “MS Office” used extensively in business

Because they are “standard indispensable tools” that are used daily, the impact of automating and improving the efficiency of these related tasks can be extremely large.


Therefore, in this series of articles, we would like to introduce a method and library for operating the spreadsheet software PowerPoint, which is considered to be the most frequently used of all Office applications, using Python.

Excel has so many features that it is impossible to cover them all in this article alone. We will provide detailed explanations over a series of articles on the following topics

< Index of articles >
  • 【Serials #1】How to install the library and create files and slides ->>
  • Serials #2】How to insert documents into paragraphs and set fonts ->>
  • Serials #3】Insert a graph (scatter or line chart) on a slide ->>
  • Serials #4】Inserting a table on a slide ->>
  • Serials #5】Inserting shapes (autoshapes, images, boxes) into slides ->>

Now, in this first article of the series, I would like to explain “How to Introduce Libraries and Create Files and Slides”.

Please stay with us until the end of this article as you will be able to “do and understand” the following.

What you will learn in this article
  • Learn how to install the python-pptx library and get an overview
  • Learn how to insert documents into the slide template
  • The hierarchical structure of classes and objects in python-pptx
スポンサーリンク

1. Overview of “python-pptx” library

The standard way to manipulate PowerPoint from Python is to use an external library called “python-pptx. Using ”python-pptx”, you can do most of the file creation and editing tasks without launching PowerPoint.

< What you can do with python-pptx>
  • Adding Slides
  • Add and edit place folder (template)
  • Adding and Editing Text Boxes
  • Add and edit shapes (AutoShape)
  • Insert graphs, tables, and images

Other languages that can control Office applications. VisualBasic (including VBA) in .Net, and a library called 「Pywin32」 that has been ported to Python. The “Office Developer Center’s” 「VBA Reference」is a good reference for these.

On the other hand, the specification of python-pptx is completely different from them.
The official document of python-pptx is the following URL.

python-pptx Official Documents (API Document)

https://openpyxl.readthedocs.io/en/stable/

The usage of various classes, functions, etc. introduced in this article are examples.

Please check the official documentation for details and clarifications on optional arguments, etc., which can be omitted, if necessary.

1.1 Installation and Operation

Python-pptx is not bundled with ”Anacoda” and must be installed using “pip” or “setup.py”.

Install by entering the following command at the Anaconda prompt, etc.

pip install python-pptx

Note that manual installation by “setup.py” does not check for other packages (PIL and xlswWriter) that have dependencies, so we recommend installing with the “pip” command if possible.

python setup.py

Next, import some classes from the pptx module and check its operation.

Try entering and executing the following two lines in an interpreter, etc.

from pptx import  Presentation
prs = Presentation()

If no error messages are displayed at this point, the installation is successful.

The development environment and version information confirmed in the article are as follows. Please keep this in mind when using different environments or versions of libraries.

・JupyterNotebook 6.0.3

・Python3.7.6(64bit)

・python-pptx 0.6.18

・PIL(Python Imaging Library) 7.0.0

・xlswWriter 1.2.7

In the next section, we will explain how to manipulate PowerPoint using classes and objects.

スポンサーリンク

2. Basics of using python-pptx

Python_基本文法_内包表記

In this section, we would like to explain the basic usage of python-pptx.

python-pptx follows an object-oriented style of writing code. Since it is object-oriented, it is necessary to always be aware of the hierarchical structure of objects, such as parent (Super) classes and child (Sub) classes.

Object hierarchical structure… It is a little difficult to understand, but just as the various elements that make up a PowerPoint file (slides, place folders, contents, etc.) have parent-child relationships (Fig2), objects that are program components also have parent-child relationships and are related to each other.

Components of PowerPoint_rev0.3_En
Fig2. PowerPoint components and hierarchical structure

For example, the Root (top level) object is the Presentation object, which is the main body of the file, and below it is the Slide object, which manages each slide, and below that is the Shape object, which is the various types of content. (Fig3)

Details of each level are described below.

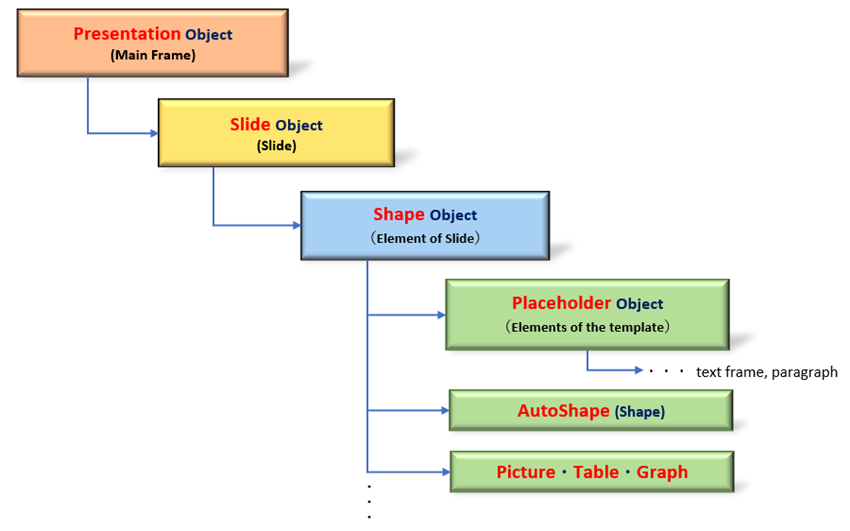

Object hierarchy in pptx_rev0.2_En
Fig3 Hierarchical structure of objects in python-pptx

2.1 Creating and saving presentations

Python-pptx manages presentation file information as a Presentation object. Therefore, the first step is to obtain the Root (top-level) object, the Presentation object.

To retrieve the object, the Presentation class should be formatted as follows

Getting the Presentation Object

from pptx import Presentation

Presentation(pptx)


arg: pptx : Specify the name of an existing pptx file to load, with path ※

return:Presentation Object

※The argument is specified when an existing pptx is to be loaded for editing, etc. To read files outside the current folder, specify with path. No argument is specified for new creation.

Furthermore, depending on the purpose of editing/creation, there would be two patterns: (1) creating a new presentation, and (2) reading and editing an existing presentation (pptx file). The former specifies no arguments, and the latter specifies the name of the file to be read with its path.

When you have finished creating and editing your presentation, save it for the last time. To save a file, use the save() method in the following format.

Saving the Presentation Object

Presentation Object.save(file)


arg: fileSpecify the name of the pptx file you want to save ※

Specify a file name, even for overwrite saving

If you want to save the file in a folder other than the current folder, specify it with a path.

The arg:file specifies the name of the file to be saved. To overwrite an existing file, specify the name of the loaded file. Note that overwrite saving does not specifically display a warning message.

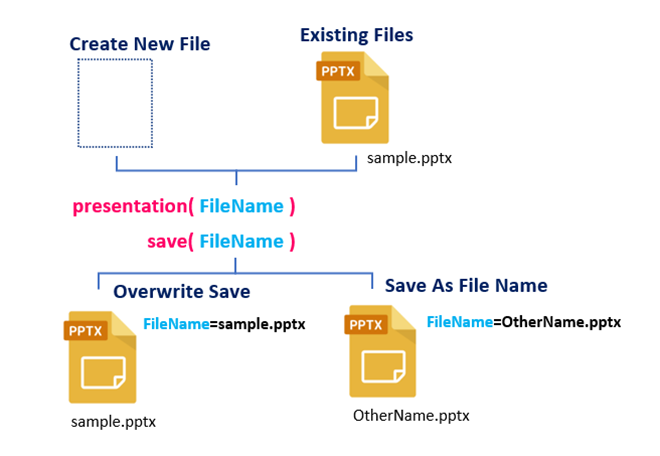

An image of creating and saving a presentation is shown in Fig4 below.

presentaion class_save function_En
Fig4 Specifying the arguments of the Presentation object and the save function

2.2 Adding and Retrieving Slides (Slide Objects)

Now that the Presentation object has been obtained, the next step is to add and obtain the slide (Slide object) that will serve as the foundation for the content.

The Presentation object manages all the slides that make up the file as the Slides collection(an iterable object whose elements are Slide objects).

Therefore, to add a new slide or retrieve an existing slide, you must first access the Slides collection (Fig5)

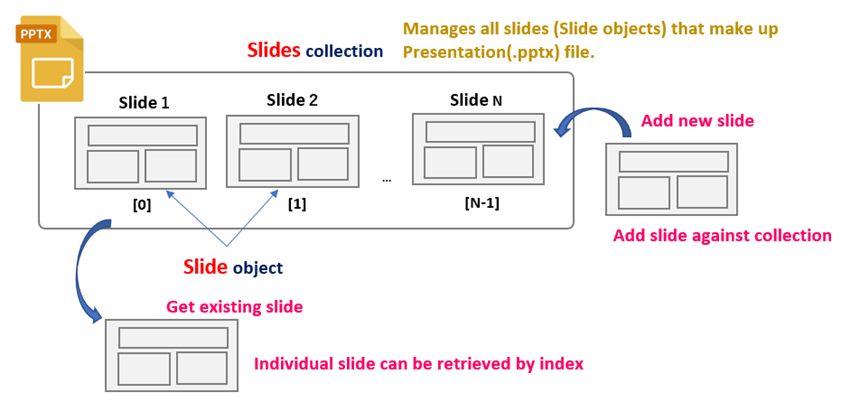

Python_SlidesコレクションとSlideオブジェクト_rev0.1
Fig5. Relationship between Slides collection and Slide object

Slides Collection can be obtained with the slides property.() Access to individual elements of a collection can be specified by index.() Also, use the add_slide() method to add a new slide. () The format for each is as follows.

Slides Collection

Retrieving the Slides collection

Presentation Object.slides

return:Collection (Slides Object)


Get a specific slide

Presentation Object.slides[index]

arg: index: Specify an index for a specific slide (starting from 0)

return:Slide Object


Adding a new slide

Presentation Object.slides.add_slide(slide_layout)

arg: slide_layout: Specify a SlideLayout object

return: Slide Object (Added slide)

Supplemental information about operations on the Slides collection.

This add_side() is the only operation on the Slides collection. It does not seem to support inserting slides at arbitrary positions, moving slides, or copying slides from another file.

The arg:slide_layout of the add_slide() method is set to a SlideLayout object that is the template for the slide to be added.

The SlideLayout object can be obtained by using the slide_layouts property.

The SlideLayout object holds the layout template information as shown in <Fig.6><Table1>.

The desired object is obtained by specifying the index as in the following format.

SlideLayout Object

Presentation Object.slide_layouts[num]


arg: num : Choose one of nine slide templates from 0 to 8 (see Fig6, Table1)

return: SlideLayout Object

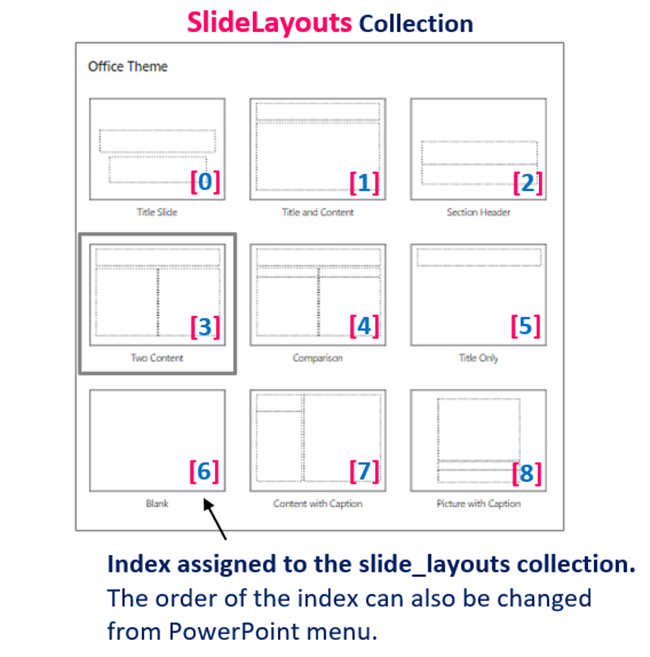

There are 9 types of slide templates (place folders) pre-prepared in PowerPoint.

python-pptx layoutオブジェクト
Fig6. Types of slide templates
 Presentaion object.slide_layouts[num] Content (place folder) type
slide_layouts[0]Title and Slides
slide_layouts[1]Title and Content
slide_layouts[2]Section header
slide_layouts[3]2 contents
slide_layouts[4]Comparison
slide_layouts[5]Title only
slide_layouts[6]Plain
slide_layouts[7]Titled Contents
slide_layouts[8]Titled image
Table1 Supported contents of slide_layouts (place folder)

Note that the slide template and corresponding index can be freely changed from the “Slide Master View” (“View Tab” > “Slide Master”) in PowerPoint.


SAMPLE➀

Let’s check what we have done so far with concrete sample codes.

The code summary is to create and save a presentation with only 3 template slides.<List1>

from pptx import Presentation

prs = Presentation()		# Obtaining a Presentation object

#---------------------------------------------------------------------------------------------------------------------------------------------------------------
title_slide_layout = prs.slide_layouts[0]	# Get the "Title and Slides" layout object
prs.slides.add_slide(title_slide_layout)	# Add new slide ("Title and Slide")

#---------------------------------------------------------------------------------------------------------------------------------------------------------------
two_title_layout = prs.slide_layouts[3]	# Get a "two-contents" layout object
prs.slides.add_slide(two_title_layout)	# Add new slide ("two content")

#---------------------------------------------------------------------------------------------------------------------------------------------------------------
comp_layout = prs.slide_layouts[4]	# Get layout object for "Comparison content"
prs.slides.add_slide(comp_layout)	# Add new slide ("Comparison Content")

#---------------------------------------------------------------------------------------------------------------------------------------------------------------
print(len(prs.slides)) 		# Number of elements in the collection of slide objects >>3

for slide in prs.slides:
    print(type(slide))			# Object type is Slide object >> <class 'pptx.slide.Slide'>
    print('slide_index [',prs.slides.index(slide), ']')		# Examine the index of the slide >> slide_index [ 0 ], slide_index [ 1 ], slide_index [ 2 ]

#---------------------------------------------------------------------------------------------------------------------------------------------------------------
prs.save('sample.pptx')	# Save as pptx file with name

The following is an explanation of key points.

In lines 1 and 3, the Presentation class is imported and objects are created, which will be handled by the variable “prs”.

Lines 5,6 :【Add Slides】

Obtains the SlideLayout object that will serve as the template for the slide. Here, the index is set to “0“, so the template will have “Title and Slides” content.

Next, in line 6, we add a new slide by setting the argument of slides.add_slide() to the SlideLayout object. 10, 11, 14, and 15 are similar.

The Len() function on line 14 checks the number of elements (3) in the Slides collection.

Lines 20,22: 【Check slide attributes】

Iterate over the Slides collection with “For“statement and break it down into individual Slide objects.

The standard function type() and index() methods are used to check and display the type and index of an object, respectively.

Finally, the save() method saves the file as named and outputs the pptx file.

The execution result of <List1> will be as follows.

A presentation file with three blank template (place folder) slides has been output. (Fig7)

スライドの追加のイメージ
Fig7 Result of execution

2.3 Obtaining a placeholder and setting the content

In the previous section, we specified a SlideLayout object, which is the template for adding slides. In this section, we will discuss a little deeper into the placeholder object, which is a component of the SlideLayout object.

The hierarchical structure of objects between the Slide object and the Placeholder object is shown in Fig8.

placeholderオブジェクト周辺の階層構造
Fig8. Superordinate Hierarchy of Placeholder Objects

By default, there are a total of 19 types of place folders. Among them, the following are some of the most commonly used ones.

Major Place Folders
  • TITLE, CENTER_TITLE, SUBTITLE, BODY ・・・Text
  • PICTURE ・・・Picture
  • CHART ・・・Graph
  • TABLE ・・・Table

For example, the default template for PowerPoint consists of the following place folders. (The combination and arrangement can be freely changed in the master slide settings.(Fig9))

Python_Slidelayoutの中のプレースフォルダ_rev0.1
Fig9. Place folder in SlideLayout

To edit an individual placeholder, you must retrieve the target placeholder object, which can be done with the placeholders property. Get all place folders on the slide, so you can select the object to be edited by specifying its index.

Getting a Placeholder Object

Slide Object.placeholders property

return:Placeholder Collection (Placeholder Object)


Slide Object.placeholders[num]

arg: numIndex of place folder on slide

return:Placeholder Object

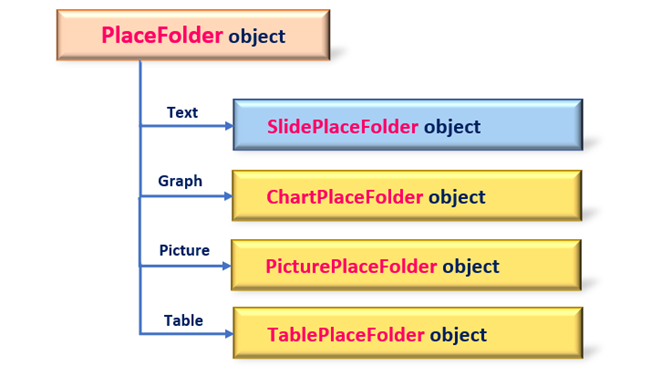

Placeholder objects are actually further classified into four types of objects depending on the content type (Text, Graph, Image, or Table).

Python_Placeholderオブジェクトの種類_rev0.1
Fig10. Types of Placeholder Objects

The main properties common to these objects include the following.

Placeholder Object. FunctionsOther/Details
.name protertyGet the place folder name
.placeholder_format.idx propertyGet indexes
.placeholder_format.type propertyGet place folder typePP_PLACEHOLDER
Table2. Common Properties of Placefolder Objects

The type attribute is for acquisition only, so the folder type cannot be changed.

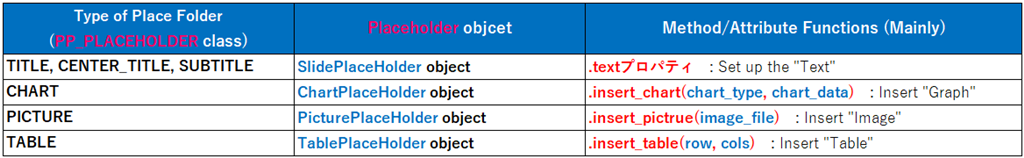

In addition, object-specific methods include the following. Text, graphs, images, and tables can be inserted into the holder. <Fig.11>

Python_Placeholderの固有メソッド一覧_rev0.1
Fig11. Specific methods of various Placeholder objects

SAMPLE②

Here is a concrete sample code that uses the Placeholder object.

The code outline will first create a new pptx file and add 2 slides. Next, after checking the attributes of the place folder in each slide, set the text to “TITLE“.

from pptx import Presentation

prs = Presentation()

#------------------------------------------------------------------------------------------------------
title_slide_layout = prs.slide_layouts[0]        # Get SlideLayout object for "Title and Slide"
sld0 = prs.slides.add_slide(title_slide_layout)  # Add new slide

for p in sld0.placeholders:  # Expand individual PlaceFolde objects in the slide
    print(p.name)  # Get the folder name
    # >>Title 1, Subtitle 2

    print(p.placeholder_format.idx, p.placeholder_format.type)  # Get the index and type
    # >>0 CENTER_TITLE (3), 1 SUBTITLE (4)

#------------------------------------------------------------------------------------------------------
title_slide_layout = prs.slide_layouts[3]        # Obtain a SlideLayout object with "Two contents"
sld1 = prs.slides.add_slide(title_slide_layout)  # Add new slide

for p in sld1.placeholders:  # Expand individual PlaceFolde objects in the slide
    print(p.name)  # Get folder name
    # >>Title 1, Content Placeholder 2, Content Placeholder 3

    print(p.placeholder_format.idx, p.placeholder_format.type)  # Get the index and type
    # >>0 TITLE (1), 1 OBJECT (7), 2 OBJECT (7)

#------------------------------------------------------------------------------------------------------
title = sld0.placeholders[0]                     # Obtaining the PlaceFolder object for slide1, Title1.
title.text = "「タイトルとスライド」のスライド"     # Set text

title = sld1.placeholders[0]                     # Obtaining the PlaceFolder object for Title1 on slide 2
title.text = "「2つのコンテンツ」のスライド"

prs.save('Blog_スライドの追加とファイルの保存.pptx')

Now, let me explain the key points.

Lines 6,7:【Add new slide】

Specify the SlideLayout object ([0]”Title and Layout“) and add a new slide with the add_slide() method.

A second slide ([3]”Two contents“) is added in lines 17 and 18 as well.

Lines 9,10,13:【Check place folder attributes】

The placeholders property expands all folder information in a slide with a For statement.

Then, the folder name is checked with the name property for the individual object. Lines 20, 21, and 24 are similar.

Lines 28,29:【Set text in TITLE folder】

From the folder name research, we know that the first folder of each slide is “TITLE”, so we set the text using the text property. Lines 31 and 32 are similar.

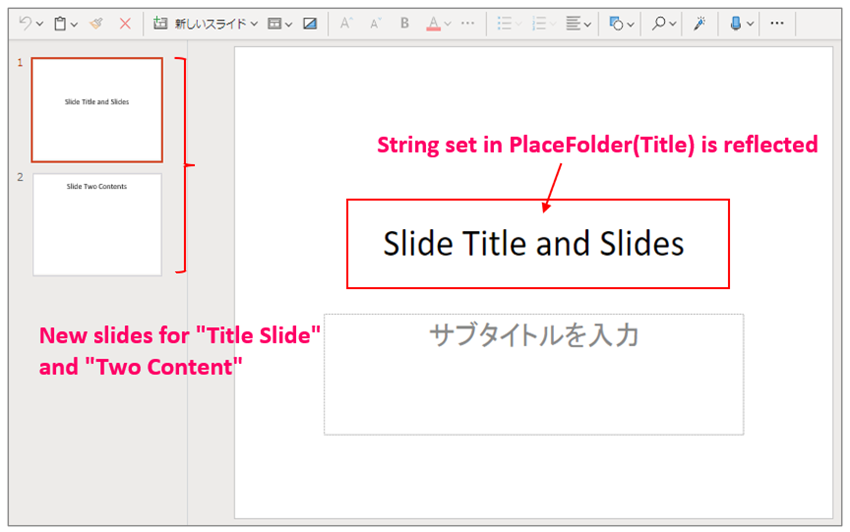

The execution result of <List2> is as follows

Two new slides (“Title and Slide” and “Two Contents”) were added and text was set for the title.

python-pptxの使い方_スライドの保存とファイルの保存
Fig12. Execution result of <List2>

SAMPLE ➂

Here is one more sample code.

The code is outlined as follows. Load the output (pptx file) of <List2> and add a new slide (titled figure). And one that inserts the image into the “PICTURE” place folder, names it and saves it as.

from pptx import Presentation

prs = Presentation('Blog_スライドの追加とファイルの保存.pptx')   # Load existing file
#------------------------------------------------------------------------------------------------------
title_slide_layout = prs.slide_layouts[8]         # Get layout object for "Titled figure"
sld2 = prs.slides.add_slide(title_slide_layout)      # Add new slide
print(len(prs.slides))        # Number of slides >>3

for p in sld2.placeholders:   # Get the name of the place folder in the sheet
    print(p.name)             # >>Title 1 Picture Placeholder 2 Text Placeholder 3

#------------------------------------------------------------------------------------------------------
sld2.placeholders[0].text = 'タイトル付き図のスライド'
sld2.placeholders[1].insert_picture('ビジネス_アイコン.png') # Paste image into the Image Place folder
sld2.placeholders[2].text = '画像が貼り付けられました'

prs.save('Blog_既存ファイルの取得と画像の貼り付け.pptx')    # Rename and save as

Let me explain the key points.

Line 3:【Loading of existing a file】

Loads an existing file by specifying its name as an argument of the presentaion class. Specify with Path (relative or absolute path) if you want to read files in a different location than the script.

Lines 5,6:【Add new slide】

Add a new slide ([8]”Figure with title”) using the add_slide() method.

Check the name of the place folder included in the slide at the name property on lines 9 and 10. (TITLE, PICTURE, BODY)

Lines 13-15:【Insert Content】

Text is set to the “TITLE” and “BODY” with the text property, and an image is inserted into the “PICTURE” with the insert_picture() method.

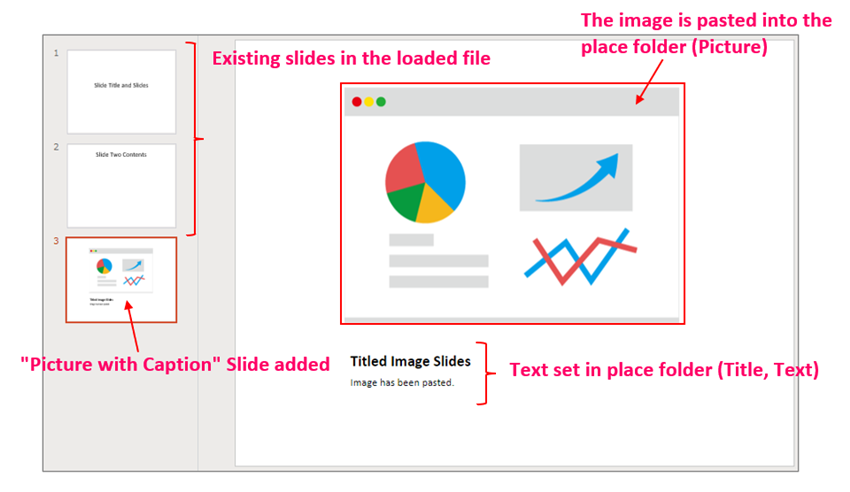

The execution result of <List3> is as follows.

A new slide is added to the existing file and the image is inserted into the PICTURE folder.

python-pptxの使い方_ファイル読込みと画像の貼り付け
Fig.13 Result of List3 execution
スポンサーリンク

3. Sumary

How was it?

In this article, we have explained the basics of using the “python-pptx library” to manipulate PowerPoint: “creating a presentation“, “adding slides“, and “creating content using the place folder“.

You have realized that this is all you need to create a minimal presentation file.

Finally, let’s keep in mind the main points of this article.

➀. In python-pptx, the hierarchical structure is organized with the Presentation object at the top. Furthermore, under the Presentation object, it is followed by the Slide object, SlideLayout object, Placeholder object, and so on. In other words, it is an object-oriented library.

➁. PowerPoint is provided with pre-defined default slides (template and place folder).

This makes it possible to easily create presentation files. In python-pptx, the SlideLayout/Placeholder object will be utilized.

Now that you understand the basics of python-pptx, we will introduce “more practical use cases” from the following series.

In the next issue, we will show you how to insert text into PowerPoint.

The basic concept of PowerPoint is to create graphically appealing materials using figures and tables, but it is important to use “text” appropriately in areas where you want to emphasize and appeal, such as bullet points, conclusions, and supplementary text.

The following article summarizes such methods.

Stay tuned for my next post!


In addition to this PowerPoint, we also have a series of articles about libraries to manipulate “Excel” and “Word”. Let’s aim to improve work efficiency by using Python to manipulate the three major Office software!

Click here for a series of articles on “Excel”.

〇 Click here for a series of articles on “Word”.

Thank you for reading to the end.

タイトルとURLをコピーしました
